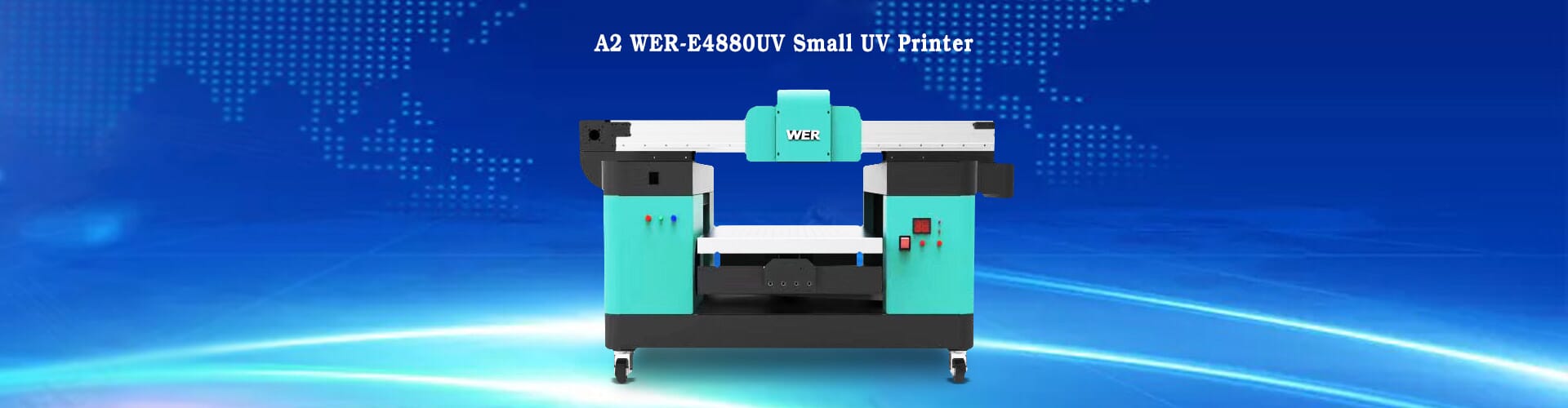

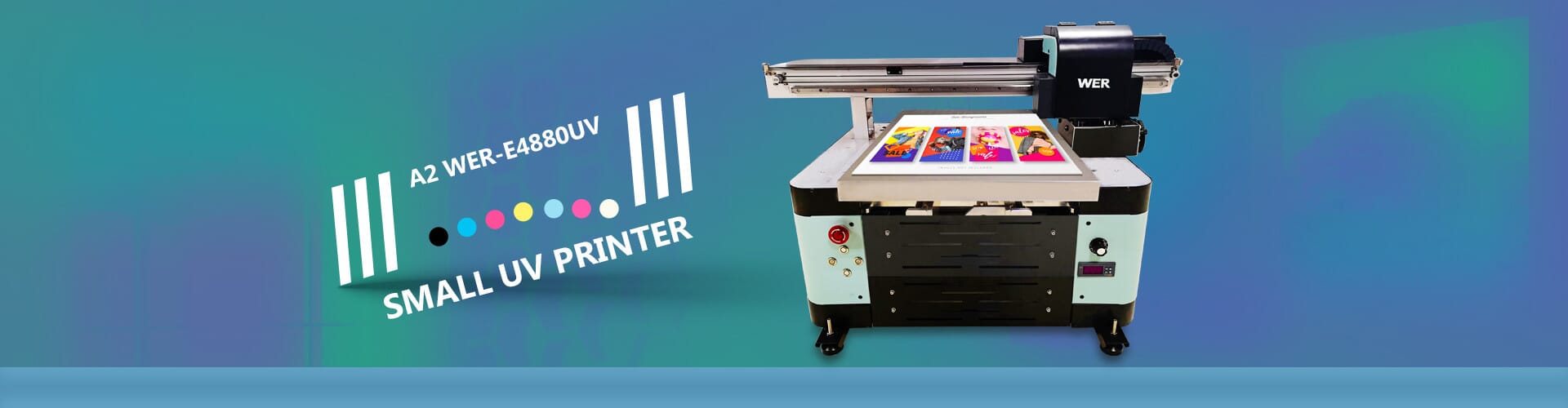

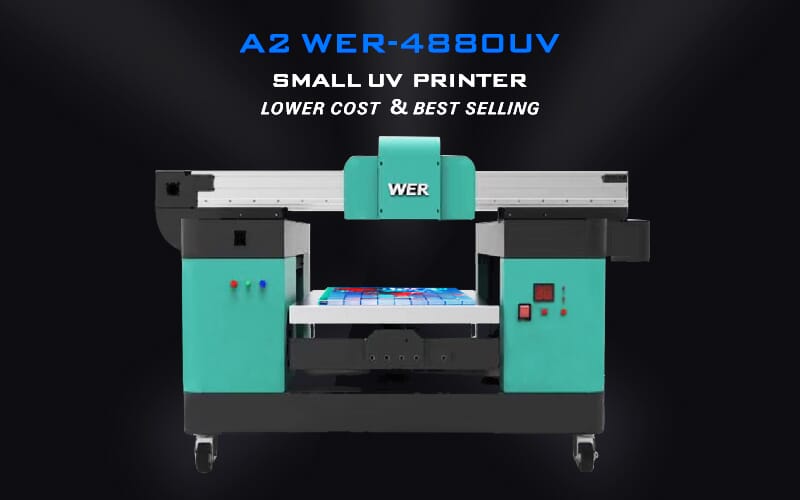

A2 WER-E4880UV Small UV Printer
Easily operated, auto cleaning function and auto height adjustment
Equipped with original Epson printing system, easily operated with LCD operation panel, auto cleaning function and auto height adjustment ,WER-ED4880UV Phone Case printer offers all the benefits of the smaller uv printer with even greater versatility and spectacular photo-quality print reproduction onto an almost limitless range of materials.
Multi-function and perfect industrial design
With the capability to print into thick substrates, it offers the ability to produce a diverse range of prints for both indoor and outdoor use. It is ideally suited for applications such as phone case, promotional items, signs, pens, ceramic, glass and metal decorative panels and more. Its maximum printing size is 450mm*750mm, which is enough to fit into most sign and graphic print shops. White, clear and color inks are available.
More Applications To Click “HERE“
Medium density fiberboard
MDF is an engineered wood product made by breaking down hardwood or softwood residuals into wood fibres, often in a defibrator, combining it with wax and a resin binder, and forming panels by applying high temperature and pressure.
Thumb drives
Fashion your way，improve your speed

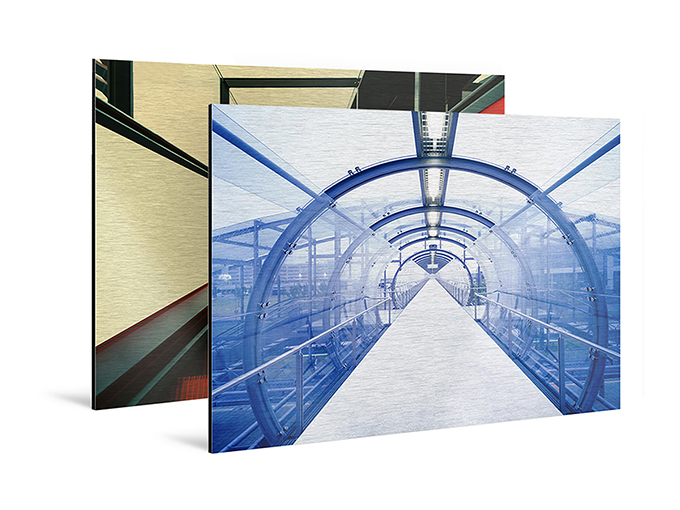

Steels
Print directly on steels，copper, iron, aluminum, home decor,aluminum alloy，etc.

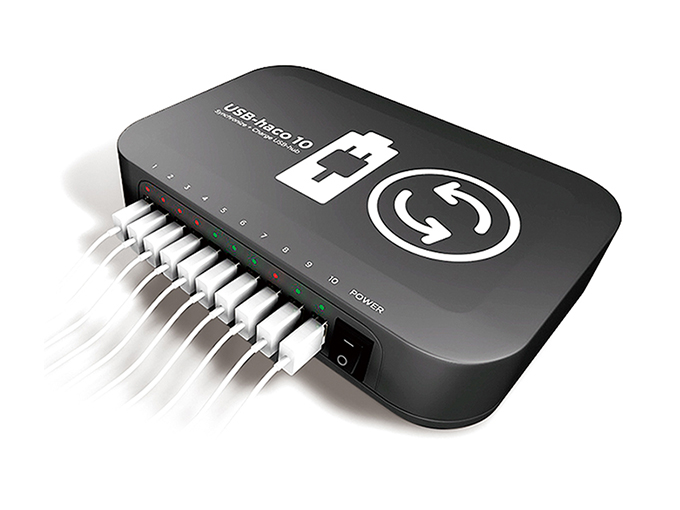

Plastic enclossures
Plastic products are the essential elements of life, a single color has been unable to meet our daily needs, to celebrate the colorful life.

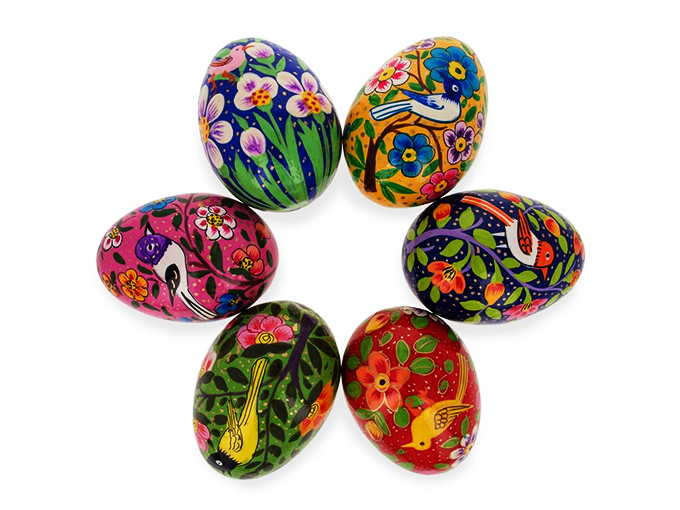

Polymer clay
Makes your life different by printing on ceramic, marble, stones,etc

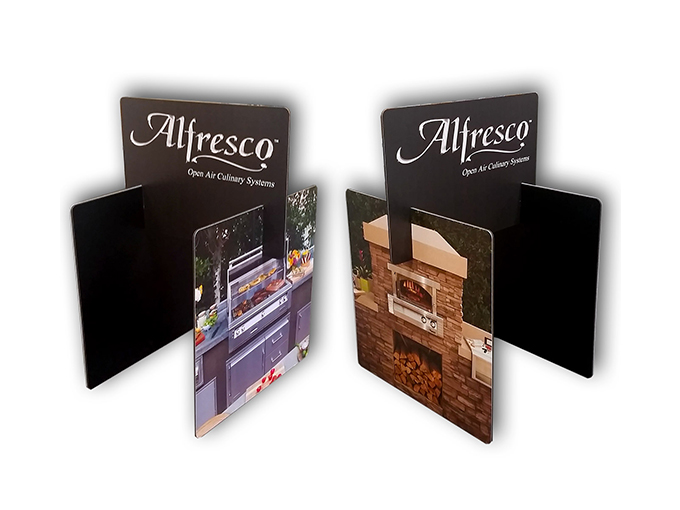

Polycarbonate
PC are a group of thermoplastic polymers containing carbonate groups in their chemical structures. Polycarbonates used in engineering are strong, tough materials, and some grades are optically transparent.
KenyaAb… +2…707 WER-ET2513UV 06/02/2024
Saudi ArabiaAs… 00…917 WER-E4880UV 06/03/2024
IranNa… 00…617 WER-ET2513UV 06/04/2024
TurkeyMu… 90…351 WER-E3055UV 06/06/2024
KazakhstanDu… 07…026 WER-E3055UV 06/08/2024
RomaniaCr… +4…727 WER-ET1510UV 06/09/2024
SwedenRo… +4…734 WER-ED6090UV 06/10/2024
South AfricaYo… +2…889 WER-750T 06/11/2024
BrazilLe… 55…563 WER-ES3204 06/12/2024
GreeceSt… +3…722 WER-E3055UV 06/13/2024 - SwedenHe… +4…819 WER-ET1510UV 06/16/2024
Sri LankaSu… 94…881 WER-ET6090UV 06/17/2024
RussiaKa… 79…100 WER-E3055UV 06/17/2024 - TurkeyMe… +9…634 WER-K5304I 06/19/2024
- South AfricaAj… +2…172 WER-ET6090UV 06/20/2024
- Iranka… 00…168 WER-E3055UV 06/21/2024
Burkina FasoHa… +2…444 WER-ET6090UV 06/23/2024 - RomaniaAu… 40…092 WER-E3055UV 06/27/2024
DEMOCRATIC REPUBLIC OF CONGOMa… 06…708 WER-ET2513UV 06/28/2024 - BrazilJo… 55…720 WER-ED6090UV 06/29/2024
- KazakhstanIt… 07…173 WER-ET2513UV 07/01/2024
- KazakhstanDa… 07…820 WER-K5304I 07/02/2024
BangladeshNi… 00…248 WER-ET1510UV 07/03/2024 - RussiaBh… 75…872 WER-E3055UV 07/05/2024
KoreaTi… 82…496 WER-ET1510UV 07/06/2024
BulgariaNi… +3…794 WER-E3055UV 07/07/2024 - Brazillu… 55…313 WER-ET6090UV 07/08/2024
BelgiumGh… +3…567 WER-E3055UV 07/11/2024
Iraqmu… 00…527 WER-ET1510UV 07/12/2024
Bosnia and HerzegovinaZe… +3…669 WER-E3055UV 07/14/2024
New ZealandDe… 06…310 WER-ES3204 07/16/2024
Pakistanmu… 92…367 WER-ET6090UV 07/17/2024
Cubaso… 05…541 WER-G2513UV 07/18/2024 - South AfricaRa… +2…835 WER-E4880UV 07/19/2024
MalaysiaPa… 60…530 WER-E3055UV 07/22/2024
Specifications
| Model | WER-E4880UV | |
| Print Technology | Drop-On-Demand piezoelectric technology | |
| Head Type | Epson tx800 (DX7 and DX5 is optional) | |
| Head Quantity | One tx800 print heads | |
| Nozzles | 180 nozzles*6 lines per head | |
| Print size | 40cm*70cm (15.7”*27.5”) | |
| Height of Print Head | 1.2mm / 2.8mm above media, adjustable | |
| Ink Supply Method | Independent continuous ink supply system | |
| Ink Cartridge | Ink Type | Rigid LED UV ink/ Flexible LED UV ink |
| Volume | 220cc / 440cc ±5cc | |
| Color | 2*CMYK LC LM or CMYK LC LM + W | |
| Media Sensor | Two sides, front edge & rear edge | |
| Print Speed | Production mode | 90 sec for A4 (360*1440dpi, 4pass) |
| Standard mode | 180 sec for A4 (720*1080dpi, 6pass) | |
| Ultra quality mode | 360 sec for A4 (720*1440dpi, 8pass) | |
| Acceptable Media Width | 450mm~750mm | |
| Print Interface | USB2.0 or USB3.0 | |
| RIP Software | Maintop for Window xp or Window 7. 8.10 | |
| Movement mode | Front and rear for platform, up and down for height | |
| Usable Media | Glass, metal, pvc, acrylic, wood, ceramic, gifts, crafts packaging, leather, plastic, 3c panels and signs etc. | |
| Lamp type | LED lamp (saving energy and environmental friendly) | |
| Power supply | 50Hz/60Hz, 220V(±10%)>1.7A | |
| Operation Environment | Temperature: 20℃~32℃; Humidity: 35%~80% | |
| Package Dimension | 1000mm*800mm*1150mm | |
| Gross Weight | 175kgs | |
- Original Epson print headfor A2 flatbed uv printer, CMYK + W & Double CMYK LC LM
- Adopt the ball screw for A2 flatbed uv printer platform movement, max 18cm for print height
- 3. Providing of led uvflexibleink or led uv rigid ink, you can print any designs on any materials
- 4. Adopt the advanced variable ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster
Feature
Advanced Printing Technology:
The ED48800UV ink system is based on an advanced LED UV curing system. It uses proprietary direct to substrate LED UV ink. The LED UV ink technology allows the creation of amazing 3D textured and raised printing effects.
Flash On Ink Firing System
Intelligently powered by FOIF system, the ED4880UV Phone Case printer electronically activates the UV LEDs when firing ink only. As a result the life time of the printhead and the UV LEDs is maximized. FOIF also protects the entire ink system including the ink pump, the wiper, the damper, and the cap tops.
Control On Demand System
Designed for an enhanced flexibility and simplicity, COD digitally controls the operation of the LED UV system. It automatically adapts to different materials and working environments. COD controls the UV Curing mode(Bi-directional, Uni-directional). This will result in delivering an optimal printing quality and drying time.
Safe Water Cooling Control System
Designed for operational extra safety and simplicity, SWCC system is built on a digital industrial chilling system. It recycles 300ml of an industrial cooling liquid. The liquid level is visible and refillable on demand to avoid the wearout of the UV LEDs.
Automatic Printhead Height Adjustment
Designed for operational extra safety and simplicity, SWCC system is built on a digital industrial chilling system. It recycles 300ml of an industrial cooling liquid. The liquid level is visible and refillable on demand to avoid the wearout of the UV LEDs.
- Continuous Ink Supply System
Unlike ink cartridges, this system allows for 100% utilization of available ink. - Remote Control Panel
The RCP is a software module allowing the remote administration of the printer from your desktop computer. - Easy leave
Automatic ink system cleaning by time setting prevent head clog.
Accessories
| No. | Item | Unit | Discription | Warranty | Function | Price |
| 1 | Printhead | Pcs | EPSON F186000 DX5 Second encrypted | No | Physical resolution control | |
| 2 | Mainboard | Pcs | Yes | Printer data control | ||
| 3 | MCB board | Pcs | Yes | Data transfer | ||
| 4 | PCB board | Pcs | Yes | Driver system | ||
| 5 | Servo motor | Pcs | No | Drive control | ||
| 6 | Servo motor driver | Pcs | No | Driver software for servo motor | ||
| 7 | Power supply | Pcs | No | Power control | ||
| 8 | UV Lamp water cooling box | Pcs | No | Cooling system | ||
| 9 | Printhead data cable | Pcs | No | Printhead data cable transfer | ||
| 10 | LED UV Lamp | Pcs | No | LED UV drying system | ||
| 11 | Ink damper | Pcs | No | Ink filter | $9.99 | |
| 12 | Ink tube | Pcs | No | Ink transfer | ||
| 13 | Wiper | Pcs | No | Scrape the waste ink | ||
| 14 | Motor belt | Pcs | No | Driver system | ||
| 15 | Carriage belt | Pcs | No | Driver system | ||
| 16 | Cleaning unit | Pcs | No | Printhead cleaning system | ||
| 17 | LCD touch screen | Pcs | No | Touch screen panel | ||
| 18 | Ink cartridge | Pcs | No | Ink container | ||
| 19 | Raster reader | Pcs | No | Data transfer | ||
| 20 | Raster sensor | Pcs | No | Data transfer | ||
| 21 | Ink chip | Pcs | No | Driver system |
Price description
For the above items, there are some consumable parts (like printheads) and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.
| No. | Discription | Quantity | |
| 1 | USB data cable | 1 | Free |
| 2 | Funnel | 5 | Free |
| 3 | Ink chip | 8 | Free |
| 4 | Ink chip refresh | 1 | Free |
| 5 | Ink tube | 2 m | Free |
| 6 | Ink capping top | 1 | Free |
| 7 | UV Ink damper | 4 | Free |
| 8 | Syringe | 5 | Free |
| 9 | Software and user manual | 1 set | Free |
| 10 | Power cable | 2 | Free |
Attention
1. When the equipment sent to the customers and ready to all install, the first thing is to prepare a voltage regulator, while civil voltage is stable now, but still there will be some floating up and down. Because of the voltage instability, which will have some difficulty in installation. The problem we met mostly may be the connection to computer, or after the online software can’t normally opened, also is the computer power cord unexplained fever, which may affect the equipment! At this time we are going to use multimeter to measure the voltage to solve this matter!
2. When we switch on, machine reset successfully, then we open software. Since the connection when the machine is reset software absorbing ink pad will be a process of down and up, the device is reset, so as to lead to errors instructions, machine reset failed!
3. When using the equipment, printing products if happens to catch up with something not in, so it is better to turn off the software. Because the device under the connection state of software will continue to control flash spray nozzle, after a long time will lead to absorb ink pad ink spill over into the ink pad on the lines below, after a long time will affect the equipment!
4. If our production is completed, shut off the device, the software must be closed first.
5. Before you insert the data cables, turn off the printer power first.
6. Before printing works, you should make sure printheads don’t hit print media, adjusting the nozzle height then send the print task.
7. Often clean the printhead and the printhead stays wet, prevent drying printhead from affecting the service life of the nozzle.
8. The machine doesn’t work, don’t inject ink into the cartridge.
9. If you haven’t operated the machine for a long time, clean up to remove the nozzle with a cleaning fluid stays wet.
Support
RIP Software
Our RIP software can be used for EPSON and many other kinds of brand printer for white ink printing
RIP software latest Version Maintop 6.0
1.CMYK+WWWW printing 2. color enhance printing 3. better printing quality 4. easy operating and fast delivery
Guides videos
About guide video: If you meet any question on installing or printing after you bought this machine, please contact our sales to send you the guide video.
Warranty Information
ALL WER printers come with a standard one-year warranty, with the option for a 2 or 3-year warranty extension contingent on registering your device within 60 days of purchase. By then WER or WER’s agent will send a document to you, everything will take effect after signature, thank you!
