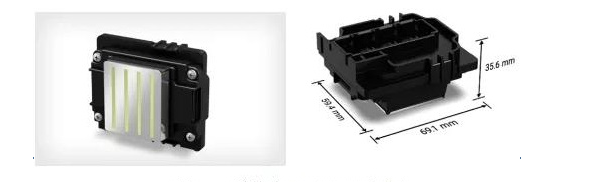

Epson I3200-A1 print head
In China, there is no doubt that Epson has the most models and the largest number of sprinkler heads used in large-format printing. This, coupled with some historical reasons, has led to a wide variety of Epson print heads on the market. Take the Epson I3200-A1 and 4720 for example, which correspond to different names for normal head and disassembly head respectively. The author has different views on this kind of statement and tries to explain the difference between them by means of comparison and experiment.
In general, the biggest difference between the two is the different usage scenarios.
However, the Epson I3200-A1 is superior to the original 4720 in all aspects due to the adoption of the latest technology, the addition of more control units and the technical support from Epson headquarters.
This time, we compared and measured the hardware conditions, printing effect, printing speed and performance of the two sprinkler heads on the 1800mm water-based photo machine, which were set in the same environment, the same ink and the same medium.
Different data may be obtained due to different usage scenarios of large-format printers.
In terms of the basic environment, the temperature is ideal, but the humidity is obviously a little bit lower, a good humidity should be around 60%.
There’s a higher probability of static electricity.
This makes flying ink more likely.
Because mainly is the test nozzle performance so USES is the dot, the color block, the speed and so on focal point, and is the printing transfer paper, therefore does not consider the color management part.
From the point of view of connecting the installation nozzle, there is an extra line for transferring the decryption card because 4720 needs the decryption card. I don’t need the I3200.
In short, in the environment preparation section as much as possible to ensure consistency in the test environment. It is worth comparing the data.
Part TWO: Data recording and comparative analysis
Given the amount of data recorded during the test, the subject of this study is the comparison of the two heads.
Therefore, we only extract the data related to nozzle performance for presentation and analysis. Part TWO: Data recording and comparative analysis
- Point shape and satellite points:
I3200-A1 1pass black amplification 4720 1 pass black amplification
I3200-A1 head 4720 head - From Figure 3 and 4, we can clearly see that every point of 4720 nozzle has a regular satellite point or can be said to be flying ink. And the location of the main ink point and satellite point or flying ink is relatively fixed, and with wobble. I3200-A1 obviously has no similar flying ink and satellite points. The availability of satellite points and fly ink is very important for the texture of the small print and accurate picture. We can clearly see the difference in quality in the picture.Let’s look at the point shape. As 4720 nozzle has satellite point or flying ink point, the main ink point is taken as the comparison object. It is easy to find that i3200-A1 is much rounder in the point shape presented on the same thermal transfer paper. At the same time, because of the physical and chemical properties of thermal transfer paper surface is impossible to get such as lamp, paper above the roundness is very high point shape.In terms of image quality, color pictures may not look very different to the average person, but when we pay attention to some details and compare them, we can see the difference.These differences may be acceptable to the less demanding customer, but for the more demanding customer the performance of the details is crucial.We sometimes see that it’s not good to have a gray image, but it actually has a lot to do with whether there’s a flying ink or a satellite point.
Take a look at the image below to make the comparison easier. There is no more to appreciate here:
After looking at a lot of details, let’s look at the quality part. This time we looked at the color block difference and color block printing of the same color multi-nozzle.
- Comparison of speed and ignition frequency:

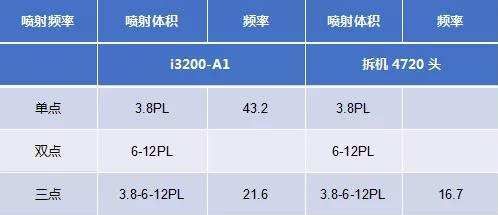

According to the record table, the arrangement is as follows:
As can be seen from the above table, the ignition frequency of I3200-A1 is 4.9kHZ higher than that of 4720 sprinkler head at 3 o ‘clock when the ink droplet size is the same. That is to say, i320-A1 is 29.34% higher than 4720 sprinkler head in terms of ignition frequency.

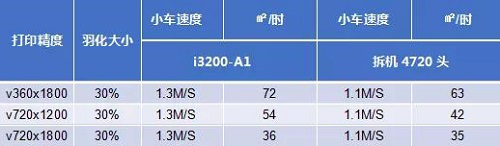

As can be seen from the above table, no matter under which mode, the speed of I3200-A1 shows a winning trend.
Part THREE: Summary

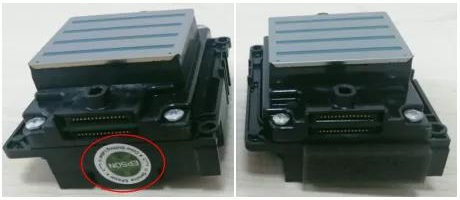

In terms of appearance, it is difficult for us to subdivide the difference between the two. The only difference that can be seen in the market is the security label below the data line interface as shown in figure I3200-A1, while the detuning head is a buffer foam.
To sum up, although the head and the head are both Epson’s sprinkler heads and the technical data are quite similar, there is a large gap in actual use.
The reason is that 4720, as a desktop printer, should be used in a non-continuous, narrow range, good temperature and humidity in the working environment, and relatively stable ink supplier, so 4720 shows a good use experience in this environment.
In large-format printing, the environment is completely different.
Large-format environment need to adapt to more ink, more complex environment, work longer hours and more personalized customization, so in didn’t get the technical support and cooperate with the Epson company, we will play in 4720 out of style will need to spend more time and energy, and to set the application scenario more single.
To sum up, we should consider not only the price of individual print heads, but also the cost of implementing these scenarios when selecting print heads.
For I3200 – A1, with Epson the department of technical support and open data, both waveform, reference test system, and voltage can be adjusted, and soon have more advantages, so will greatly save equipment development cycle and cost, the equipment is relatively developed, its environmental adaptability, speed, accuracy, quality and stability will be better.
Finally, or we can say that I3200-A1 provides a stronger solution and a wider range of application scenarios and adaptability. Again, this paper is only a brief review of the test data. Of course, we have reason to believe that Epson I3200-A1 performs well in the market.
