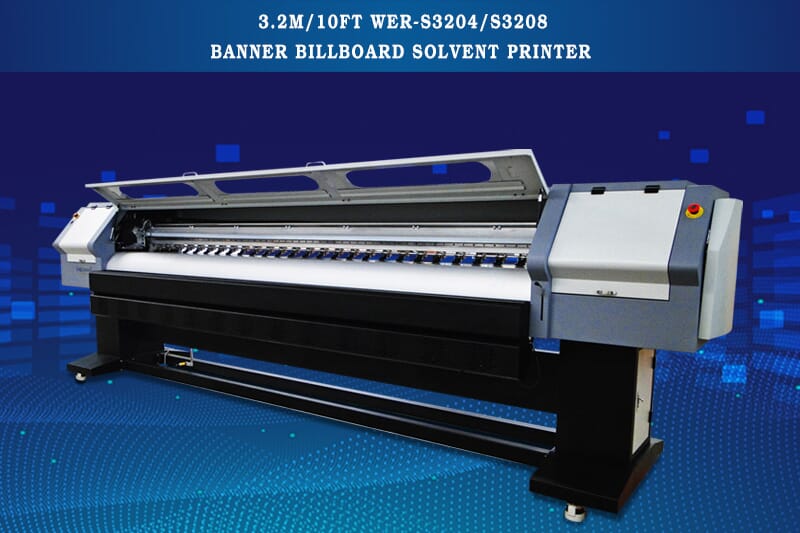

3.2m/10ft WER-S3204 / S3208 Banner Billboard Solvent Printer
Innovation to make you more profitable
Shanghai WER large format roll to roll direct to textile printers have played an instrumental role in leading the analog to digital revolution. From the instruction of first small size Desktop and Flatbed T-shirt printer to the latest large format roll to roll textile printers, WER printers continue to expand the possibilities of digital print. Today, our integrated system will help your business reach new levels of competitiveness, profitability and growth.
KenyaAb… +2…707 WER-ET2513UV 06/02/2024
Saudi ArabiaAs… 00…917 WER-E4880UV 06/03/2024
IranNa… 00…617 WER-ET2513UV 06/04/2024
TurkeyMu… 90…351 WER-E3055UV 06/06/2024
KazakhstanDu… 07…026 WER-E3055UV 06/08/2024
RomaniaCr… +4…727 WER-ET1510UV 06/09/2024
SwedenRo… +4…734 WER-ED6090UV 06/10/2024
South AfricaYo… +2…889 WER-750T 06/11/2024
BrazilLe… 55…563 WER-ES3204 06/12/2024
GreeceSt… +3…722 WER-E3055UV 06/13/2024 - SwedenHe… +4…819 WER-ET1510UV 06/16/2024
Sri LankaSu… 94…881 WER-ET6090UV 06/17/2024
RussiaKa… 79…100 WER-E3055UV 06/17/2024 - TurkeyMe… +9…634 WER-K5304I 06/19/2024
- South AfricaAj… +2…172 WER-ET6090UV 06/20/2024
- Iranka… 00…168 WER-E3055UV 06/21/2024
Burkina FasoHa… +2…444 WER-ET6090UV 06/23/2024 - RomaniaAu… 40…092 WER-E3055UV 06/27/2024
DEMOCRATIC REPUBLIC OF CONGOMa… 06…708 WER-ET2513UV 06/28/2024 - BrazilJo… 55…720 WER-ED6090UV 06/29/2024
- KazakhstanIt… 07…173 WER-ET2513UV 07/01/2024
- KazakhstanDa… 07…820 WER-K5304I 07/02/2024
BangladeshNi… 00…248 WER-ET1510UV 07/03/2024 - RussiaBh… 75…872 WER-E3055UV 07/05/2024
KoreaTi… 82…496 WER-ET1510UV 07/06/2024
BulgariaNi… +3…794 WER-E3055UV 07/07/2024 - Brazillu… 55…313 WER-ET6090UV 07/08/2024
BelgiumGh… +3…567 WER-E3055UV 07/11/2024
Iraqmu… 00…527 WER-ET1510UV 07/12/2024
Bosnia and HerzegovinaZe… +3…669 WER-E3055UV 07/14/2024
New ZealandDe… 06…310 WER-ES3204 07/16/2024
Pakistanmu… 92…367 WER-ET6090UV 07/17/2024
Cubaso… 05…541 WER-G2513UV 07/18/2024 - South AfricaRa… +2…835 WER-E4880UV 07/19/2024
MalaysiaPa… 60…530 WER-E3055UV 07/22/2024
Specifications
| Specification | S3404 | S3408 | S3204 | S3208 |
| Print Technology | Drop-On-Demand Piezo Electric | |||
| Print Head(Seiko/spt 510) | 4 Pieces | 8 Pieces | 4 Pieces | 8 Pieces |
| Print Width | 3.3m | 3.2m | ||
| Resolution | 1440dpi Max | |||
| Printing speed | 3 Pass 88 m2/h | |||
| 4 Pass 68 m2/h | ||||
| 6 Pass 50 m2/h | ||||
| 8 Pass 26 m2/h | ||||
| Locating Mode | Raster/Servo | |||
| Media Width | 3.4m (113.9″) | 3.2m (126”) | ||
| Ink Color | C M Y K | |||
| Ink Type | Solvent ink for Seiko Spt head/ 35PL | |||
| Ink lifetime | Solvent based Pigment Ink, At least two years outdoor life | |||
| Ink delivery system | Ink force pumps auto supplying system, Main ink case 1L/color | |||
| Media Handle | Roll to Roll | |||
| Media feeding &take-up system | Infra Red Optical Controlling System for Media Feeding &Take-up | |||
| Media Type | PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner etc | |||
| Height of Print-head | 5mm-8mm above media | |||
| Print head maintenance facility | Protection trays for auto purge, daily maintenance and print heads over night | |||
| Auto-cleaning system for print head | Double functional cleaning System of Pressure purge and Vacuum Suction | |||
| Interface | USB | |||
| Print Mode | Bidirectional Printing | |||
| File Format | TIFF, RGB/CMYK | |||
| RIP Software | Original Maintop/Photoprint Rip software | |||
| Working Process | Maintop software, Photoprint software for Windows 98 and Windows XP | |||
| Power Supply | 50HZ/60HZ, 220V(±10%)>15A | |||
| Filtration Facility | PALL filter (Made in America)+Regular ink filter | |||
| Operation Environment | Temperature: 18℃~26℃; Humidity: 40%~70% | |||
| packing & delivery | ||||
| N.W. | 450 KG | 550 KG | ||
| G.W. | 550 KG | 600KG | ||
| Packing | Wooden Case, Not be Braized | |||
| Packing Dimension | 3.9m*0.8m*1.6m | 4.9m*1.2m*2.1m | ||
| MOQ | 1 set per order | |||
| Delivery | 7 working days afer receiving the deposit | |||
Feature
Multi-functional printing
- 1. Heavy duty roller driving structure, film and durable body, operating with high resolution, and long service life.
- 2. Adopts double epson print head, print maximum width up to 3200mm, print speed 35 square meters per hour
- 3. 4colors (C,M,Y,K) printing with 1440dpi reach perfect printing.
- 4. The output image is non-fading, water proof and scratch proof.
- 5. Acceptable Material: Leather, Wallpaper, Self-adhesive paper, PVC, Mesh fabric, flex banner, Vinyl, coated paper, non-woven paper, pp paper, high glossy photo paper, backlit film, etc.
Direct sublimation printing system
With our professional direct sublimation printing ink, customers do not need to print product with old-fashioned heat transfer sublimation technology. Which takes too much time and printing cost in the past, all you need is to enjoy the faster speed of our direct printing technology.
Automatic heating system built-inside
One key heating system can speed up your printing process, and save labor cost at the same time.
Accessories
| No. | Item | Unit | Discription | Warranty | Function | Price |
| 1 | Printhead | Pcs | Vulnerable parts | Physical resolution control | ||
| 2 | Ink damper | Pcs | Vulnerable parts | Ink filter | ||
| 3 | Ink tube | m | Ink transfer | |||
| 4 | Wiper | Pcs | Vulnerable parts | Scrape the waste ink | ||
| 5 | Ink cap top | Pcs | Vulnerable parts | Printhead moisturizing | ||
| 6 | Syringe | Pcs | Absorb ink when the ink tube is empty | |||
| 7 | Power cable | Pcs | Power supply | |||
| 8 | Printhead data cable | Pcs | Vulnerable parts | Printhead data transfer | ||
| 9 | Short motor belt | Pcs | Motor drive | |||
| 10 | Raster strip | Pcs | Vulnerable parts | Printing calibration calculation | ||
| 11 | Drag chain | Pcs | Printheadhead position transfer | |||
| 12 | USB cable | m | Computer connection with printer | |||
| 13 | Sensor reader | Pcs | Sensor control | |||
| 14 | Ink cartridge | Pcs | Store ink | |||
| 15 | Mainboard | Pcs | Printer data control | |||
| 16 | Head Board | Pcs | Input & output board | |||
| 17 | Y motor | Pcs | Y drive control | |||
| 18 | 220 Power supply | Pcs | Power supply | |||
| 19 | X motor | Pcs | X drive control |
Price description
For the above items, there are some consumable parts（like printheads）and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.
| No. | Discription | Unit | Quantity |
| 1 | Ink Tank | 500ml | 4 |
| 2 | Ink damper | Standard | 2 |
| 3 | Syringe | Standard | 4 |
| 4 | Copper Cap | small | 4 |
| 5 | Copper Cap | big | 4 |
| 6 | Quick Connector | 4mm | 10sets |
| 7 | Power cable | 3 | |
| 8 | Driver software | 1 | |
| 9 | Screws | 3X8/4X8 | 20 |
| 10 | Ink tube | 3.8 | 2m |
| 11 | Ink tube | 2.8 | 2m |
| 12 | Ink cap top | 2 | |
| 13 | Ink pump | 2 | |
| 14 | Printhead data cable | 2 | |
| 15 | Raster strip | 1 | |
| 16 | Swab rod | 3 | |
| 17 | Y shape three direct links | 1 package |
Attention
1.Do not insert the printhead cable in a wrong position, in case of nozzle burn out.
2.In case of a sudden carriage crash, you should avoid nothing to stop the printhead carriage.
3.Be careful when you refill the inks, you should use a funnel to add in case that ink falls on the ground.
4.Printhead cleaning solution should be used when cleaning, in case of the printhead clogging.
5.Before operating the machine, you should read the instruction first, in order to avoid improper operation.
Support
RIP Software
This software is suitable for various types of printers, USB cable printing, easy to operate. Suitable for a variety of format images, bright colors.Can adjust the volume of printing ink and set the size of the single color printing, a variety of optional print white ink.
Guides videos
About guide video: If you meet any question on installing or printing after you bought this machine, please contact our sales to send you the guide video.
If the problems can not be solved you can contact our after-sale service.
